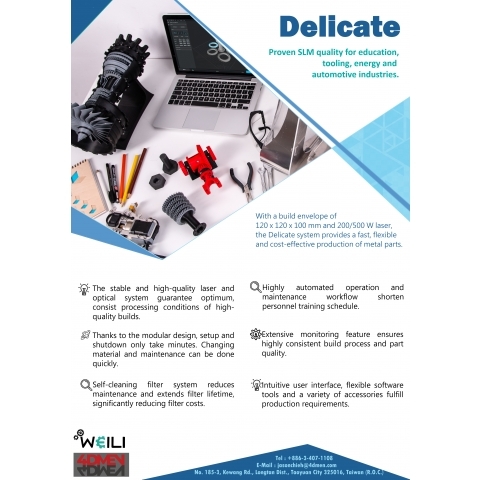

Proven SLM quality for aerospace, education, tooling, energy and automotive industries.

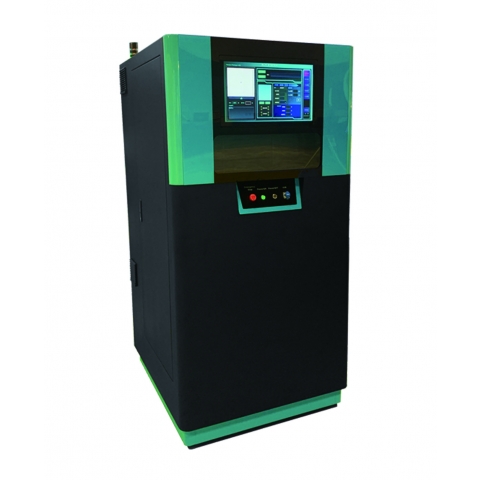

With a build envelope of 120 x 120 x 100 mm and 200/500 W laser, the Delicate system provides a fast, flexible and cost-effective production of metal parts.
◆ The stable and high-quality laser and optical system guarantee optimum, consist processing conditions of high-quality builds.
◆ Thanks to the modular design, setup and shutdown only take minutes. Changing material and maintenance can be done quickly.
◆ Self-cleaning filter system reduces maintenance and extends filter lifetime, significantly reducing filter costs.
◆ Highly automated operation and maintenance workflow shorten personnel training schedule.
◆ Extensive monitoring feature ensures highly consistent build process and part quality.
◆ Intuitive user interface, flexible software tools and a variety of accessories fulfill production requirements.
★ Technical Date
◇ WL-SLM System, WL-BP Tools
★ Materials
◇ Ti6Al4V, Maraging Steel, Stainless Steel 316L, Stainless Steel 420, Stainless Steel 17-4 PH, Cobalt Chrome, Inconel 718, Inconel 625, Inconel HX, etc.
★ Optional accessories
◇ Blasting cabinet, Materialise Magics RP, N2 Generator
【偉立產品，成新代理】
With a build envelope of 120 x 120 x 100 mm and 200/500 W laser, the Delicate system provides a fast, flexible and cost-effective production of metal parts.
◆ The stable and high-quality laser and optical system guarantee optimum, consist processing conditions of high-quality builds.
◆ Thanks to the modular design, setup and shutdown only take minutes. Changing material and maintenance can be done quickly.
◆ Self-cleaning filter system reduces maintenance and extends filter lifetime, significantly reducing filter costs.
◆ Highly automated operation and maintenance workflow shorten personnel training schedule.
◆ Extensive monitoring feature ensures highly consistent build process and part quality.
◆ Intuitive user interface, flexible software tools and a variety of accessories fulfill production requirements.

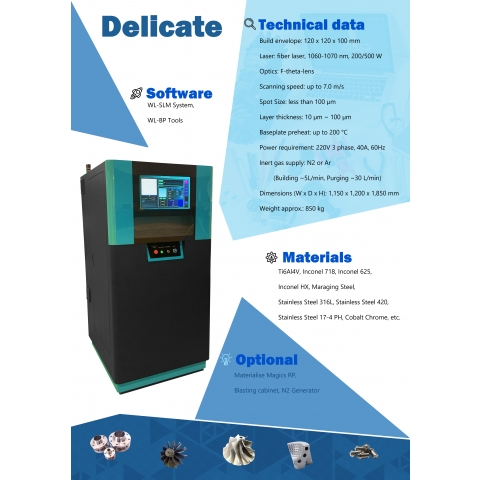

★ Technical Date
◇ Build envelope: 120 x 120 x 100 mm
◇ Laser: fiber laser, 1060-1070 nm, 200/500 W
◇ Optics: F-theta-lens
◇ Scanning speed: up to 7.0 m/s
◇ Spot Size: less than 100 µm
◇ Layer thickness: 10 µm ~ 100 µm
◇ Baseplate preheat: up to 200 °C
◇ Power requirement: 220V 3 phase, 40A, 60Hz
◇ Inert gas supply: N2 or Ar (Building ~5L/min, Purging ~30 L/min)
◇ Dimensions (W x D x H): 1,150 x 1,200 x 1,850 mm
◇ Weight approx.: 850 kg
★ Software◇ Laser: fiber laser, 1060-1070 nm, 200/500 W
◇ Optics: F-theta-lens
◇ Scanning speed: up to 7.0 m/s
◇ Spot Size: less than 100 µm
◇ Layer thickness: 10 µm ~ 100 µm
◇ Baseplate preheat: up to 200 °C
◇ Power requirement: 220V 3 phase, 40A, 60Hz
◇ Inert gas supply: N2 or Ar (Building ~5L/min, Purging ~30 L/min)
◇ Dimensions (W x D x H): 1,150 x 1,200 x 1,850 mm
◇ Weight approx.: 850 kg
◇ WL-SLM System, WL-BP Tools
★ Materials
◇ Ti6Al4V, Maraging Steel, Stainless Steel 316L, Stainless Steel 420, Stainless Steel 17-4 PH, Cobalt Chrome, Inconel 718, Inconel 625, Inconel HX, etc.
★ Optional accessories
◇ Blasting cabinet, Materialise Magics RP, N2 Generator
